ACOPOWER Mono Solar Panel——100W,175W,200W

Name: ACOPOWER Mono Solar Panel——100W,175W,200W
Brand: ACOPOWER
SKU: HY100-12MB
Price: 133000.0 KRW
Availability: InStock

₩133,000

Labor Day

SALE

09.02→09.08

Limited Time Deal

Watt

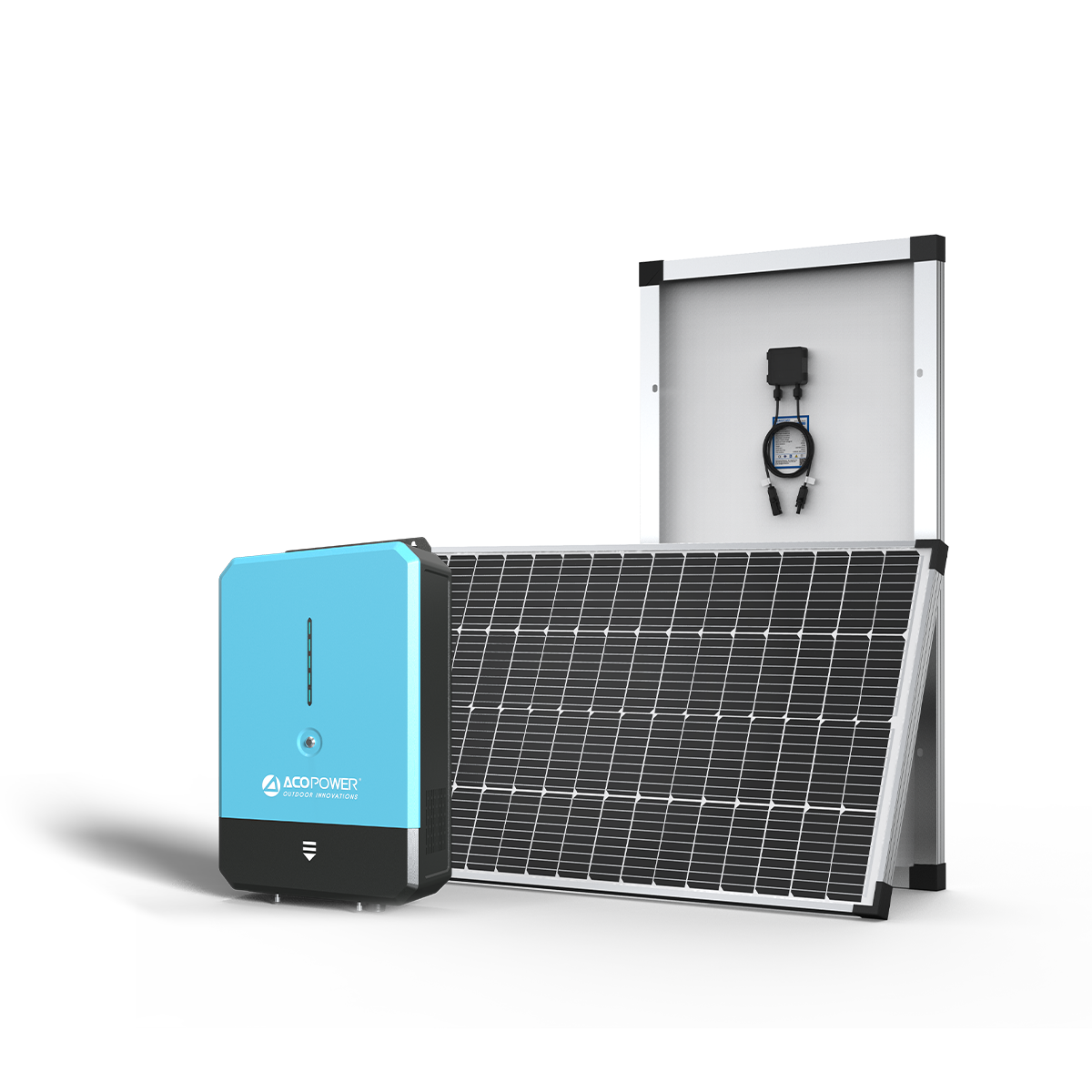

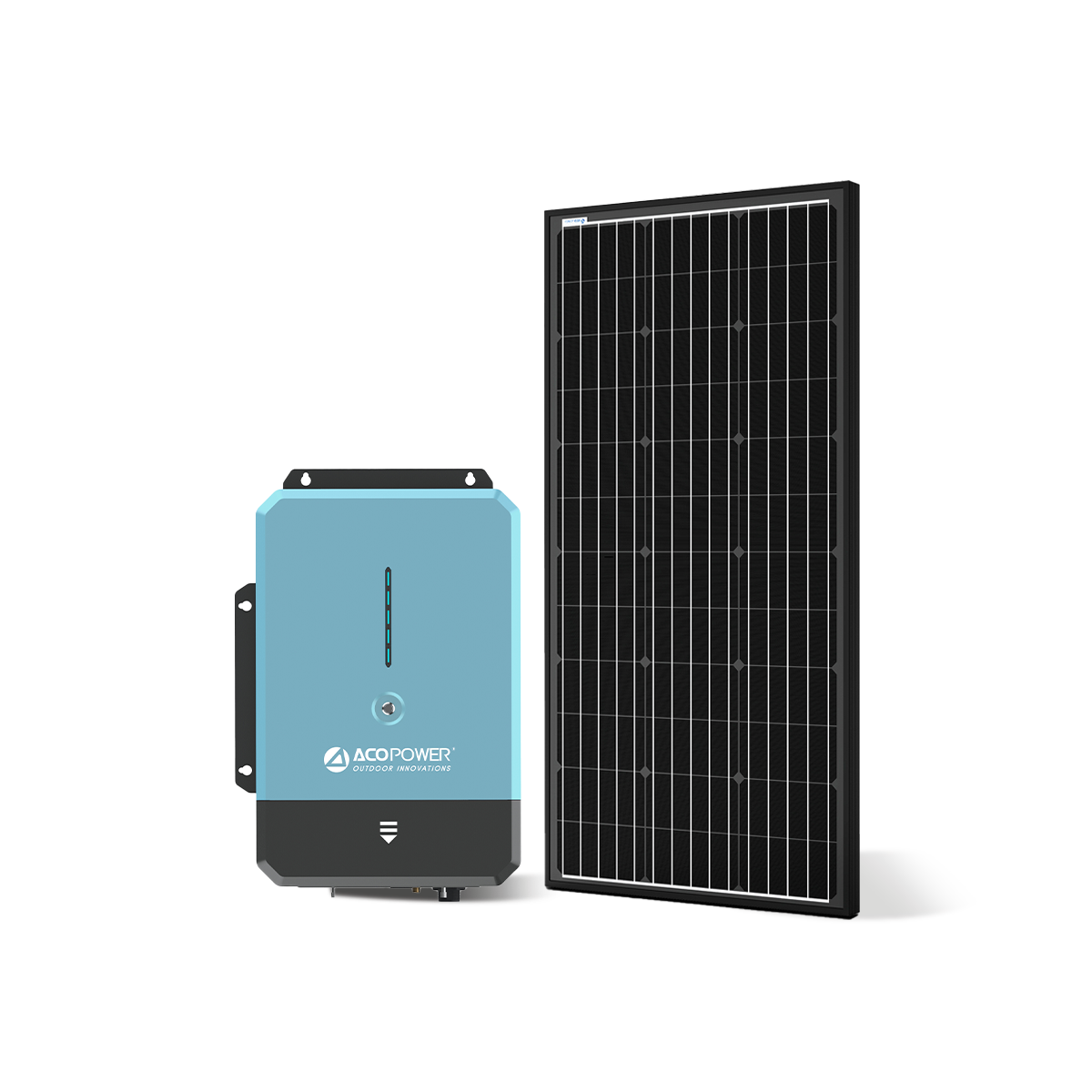

100W21 175W1000 200W21 HY200W+3000W/12V AIO

Quantity

1 Pack21 2 Pack90 3 Pack96 4 Pack97

Quantity

Shipping calculated at checkout.

Pickup available at Walnut USA

Usually ready in 24 hours

Free Shipping to United States,Canada…
Estimated Dispatch within 2 Business Days

Arrive within 2-7 Business Days
*US only. For other regions, click "More"

Pickup available at Walnut USA
*Usually ready in 24 hours

30-Day Return Policy｜5 Year Warranty Protection

Ways To Pay

Don't Miss Top Accessories

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

Regular price ₩984,000

Sale price ₩984,000 Regular price

Features Specifications FAQs Reviews

Buy Now

25-Year 80% Output Efficiency

Grade A+ Solar Cell

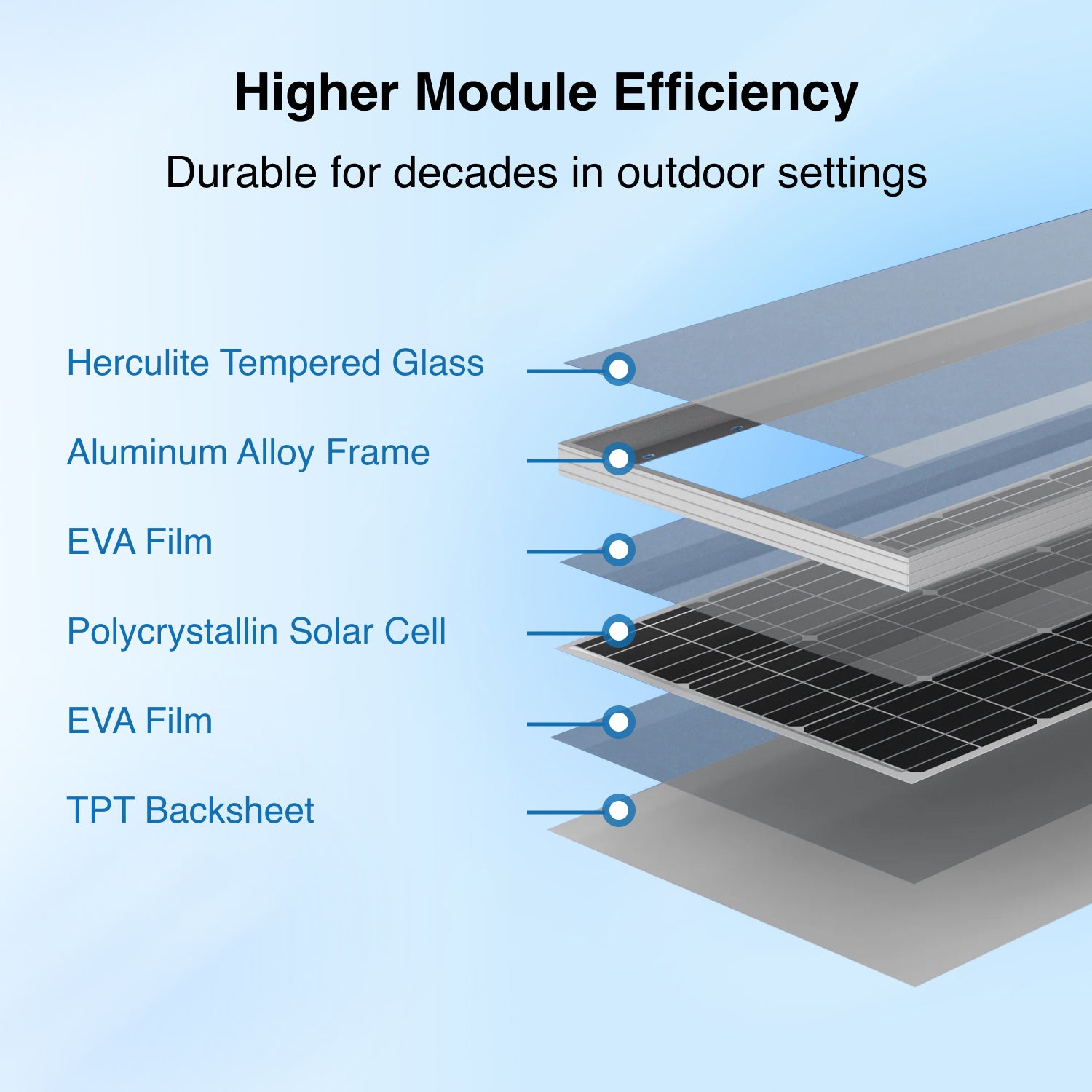

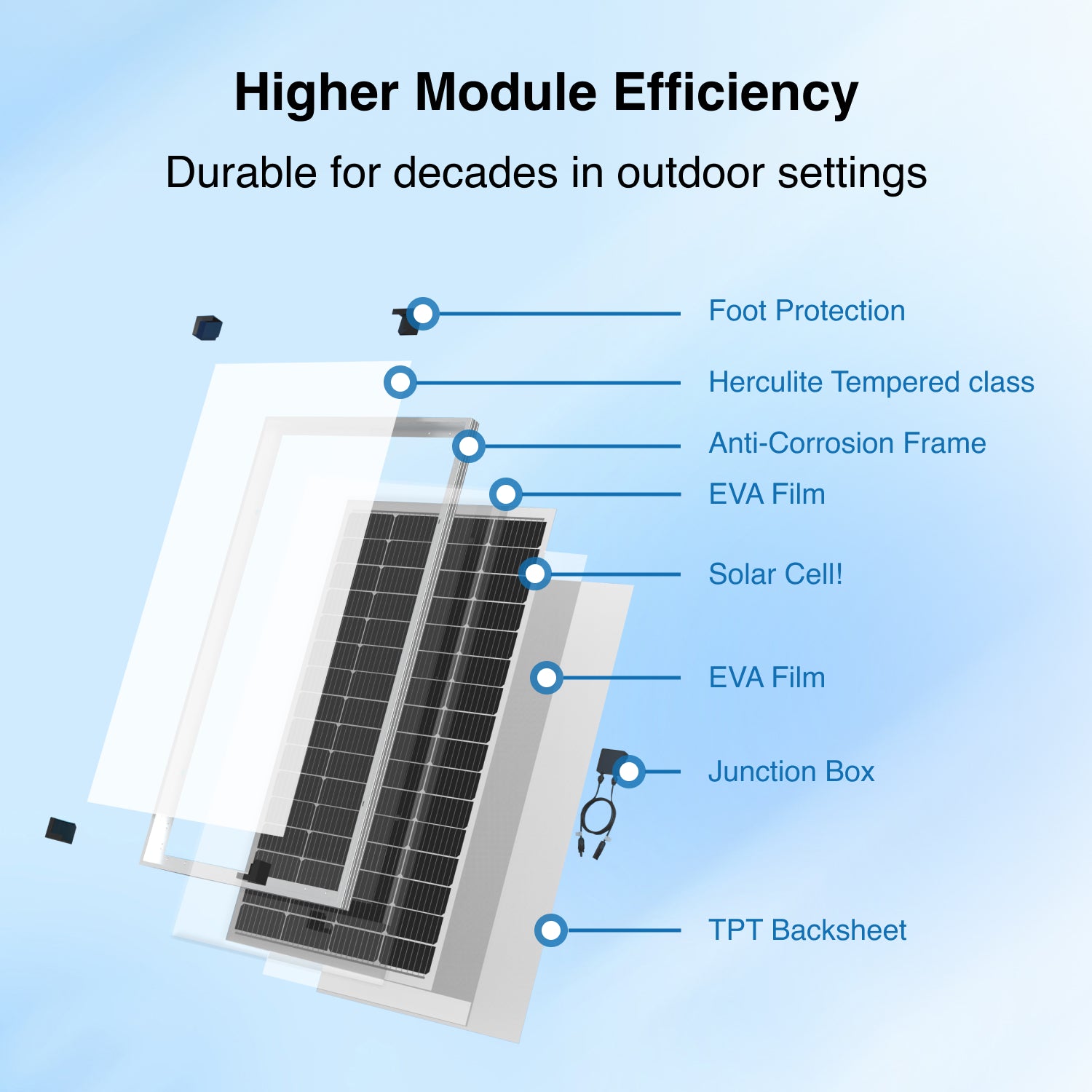

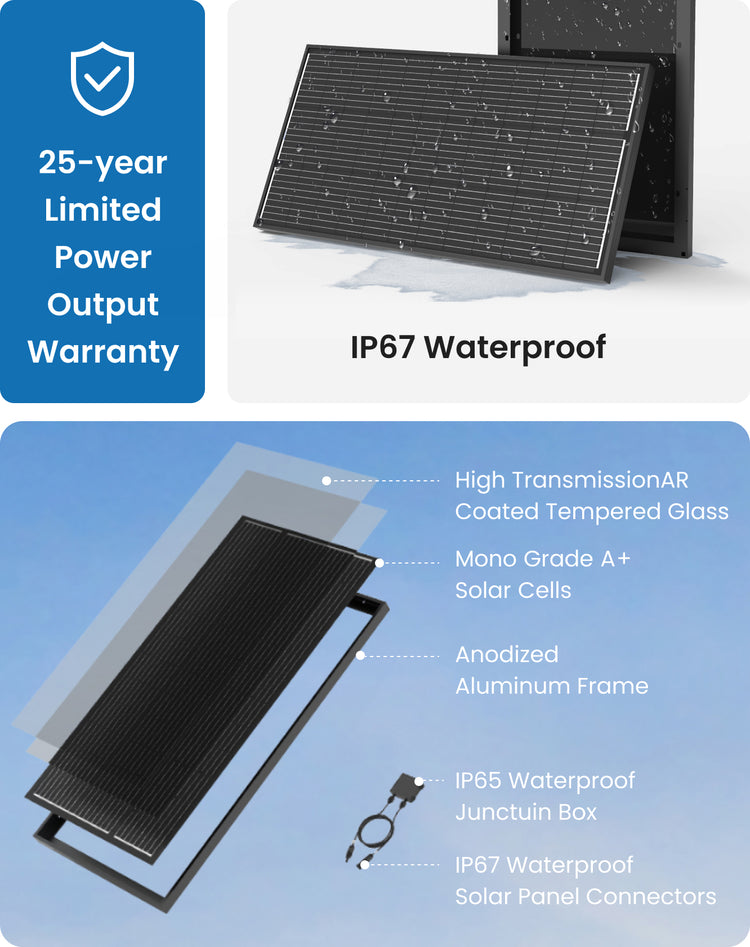

Proven Reliability and Durable Structure

IP67
Waterproof

Half-Cut PERC Cells

200W

Electricity Output

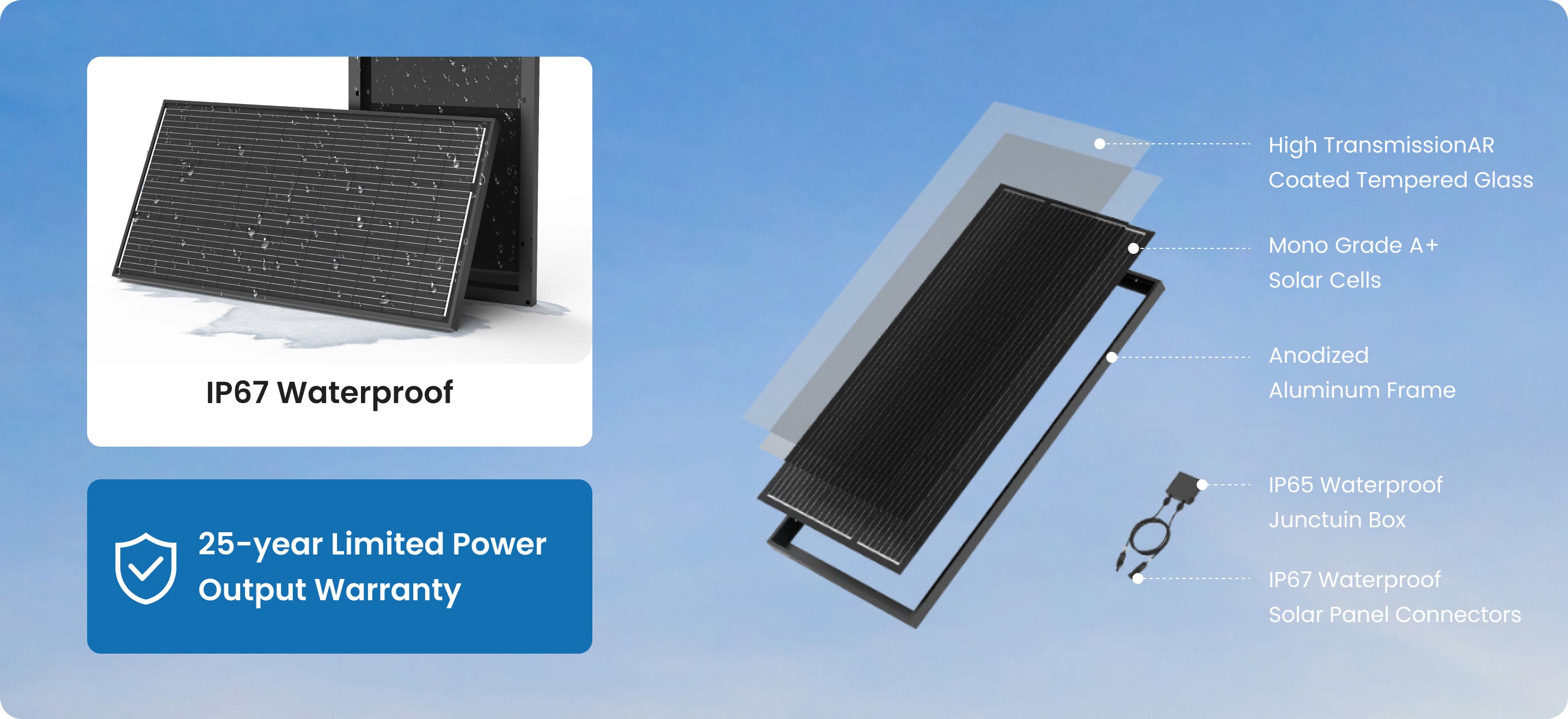

IP65 Waterproof Junction Box

IP67 Waterproof Solar Panel Connectors

Mounting Hole

Reliable Electricity Output Performance

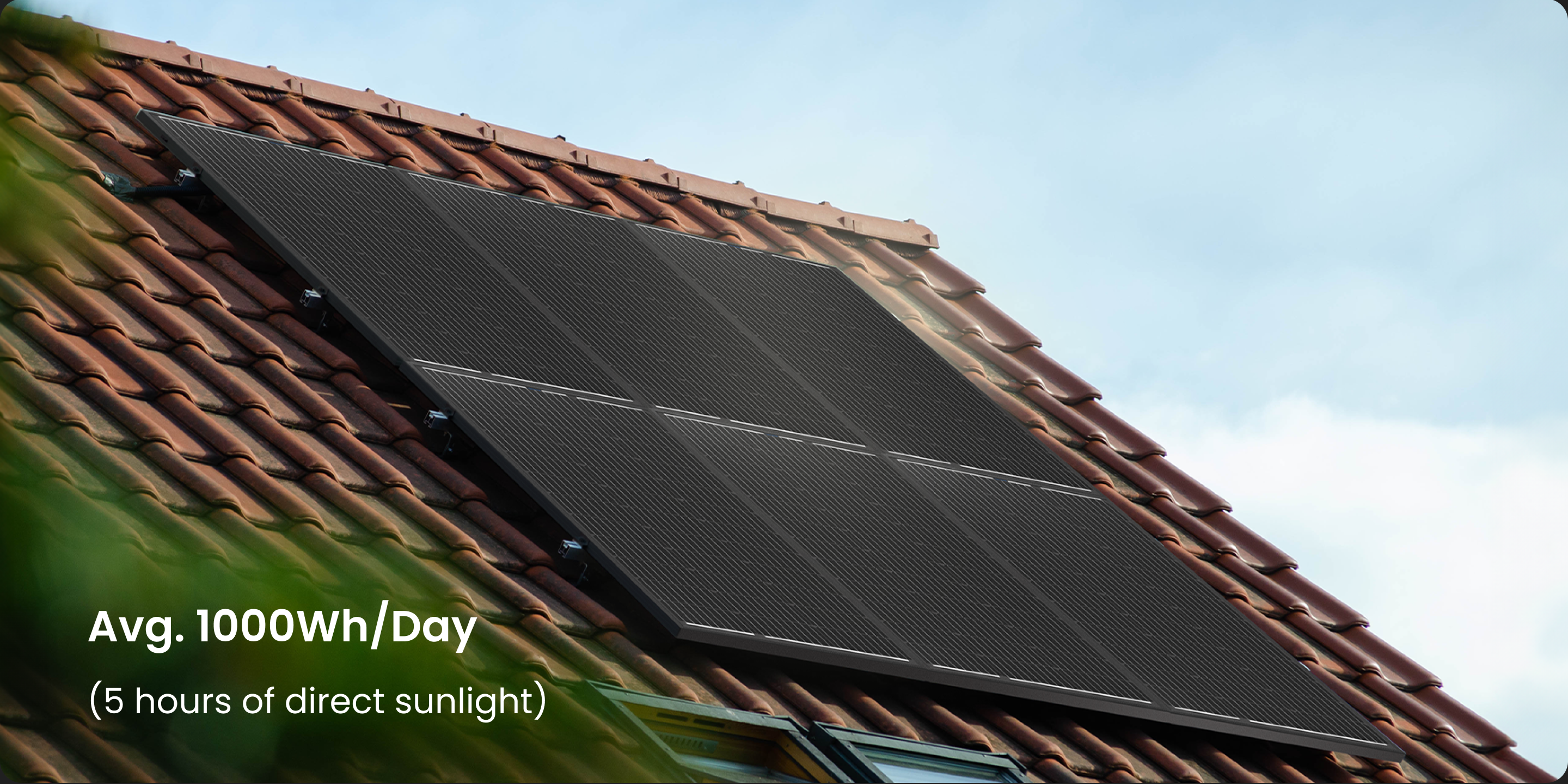

Get reliable energy with an average of 1000Wh daily, perfect for keeping your appliances running smoothly. Enjoy peace of mind with a positive output tolerance of 0%-3%, ensuring you always get what you need.

Reliable Power Output

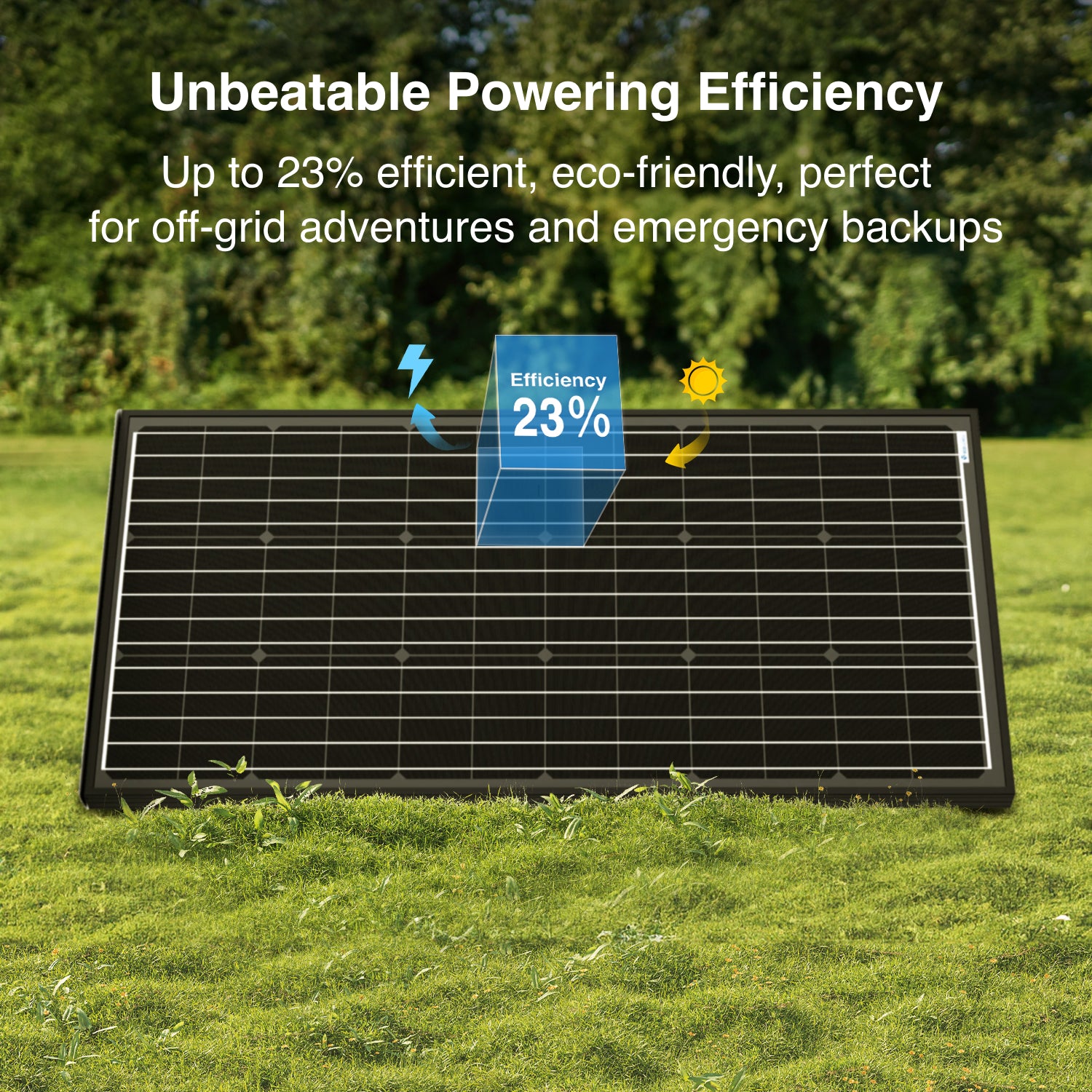

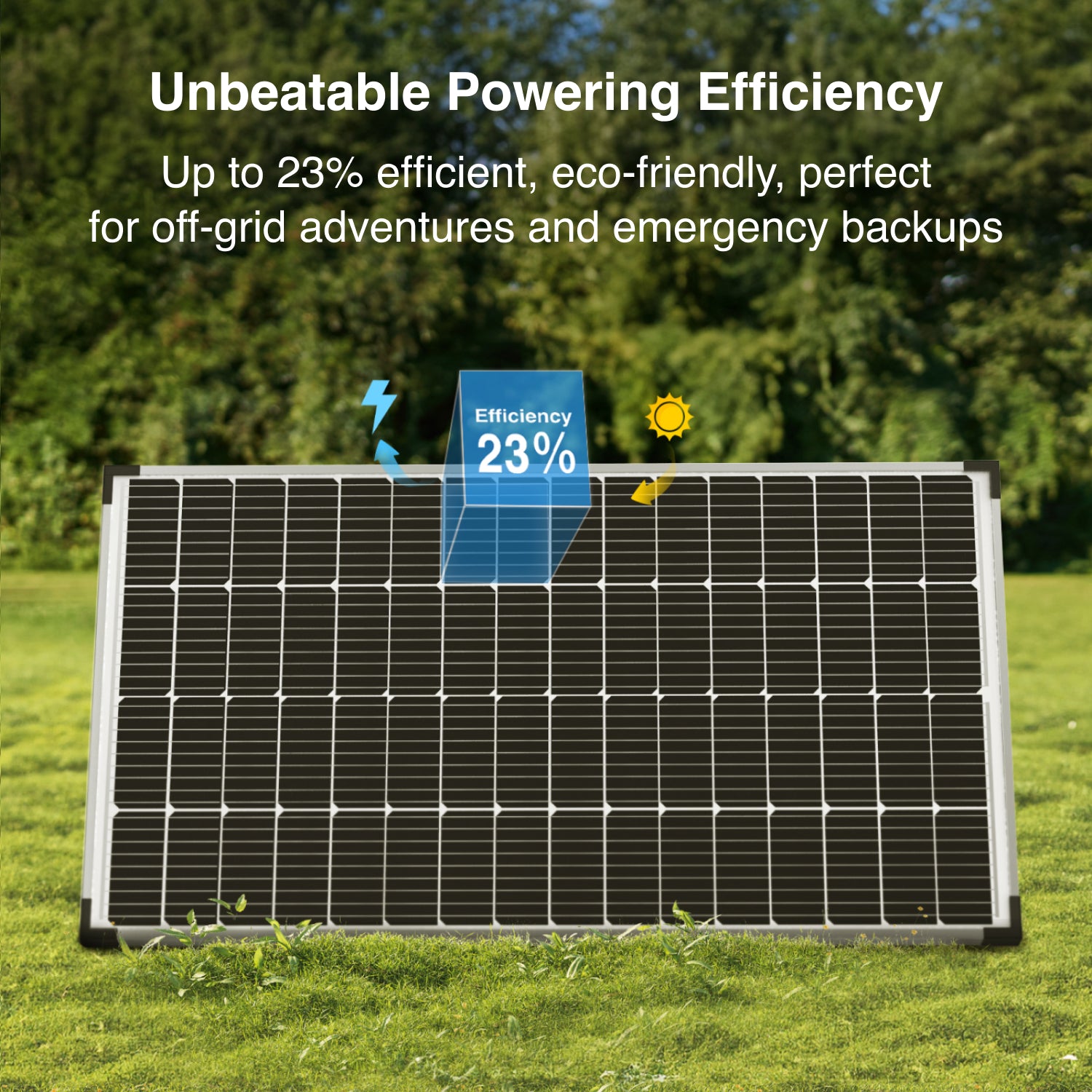

High-Efficiency Solar Cells
Consistent Power Output

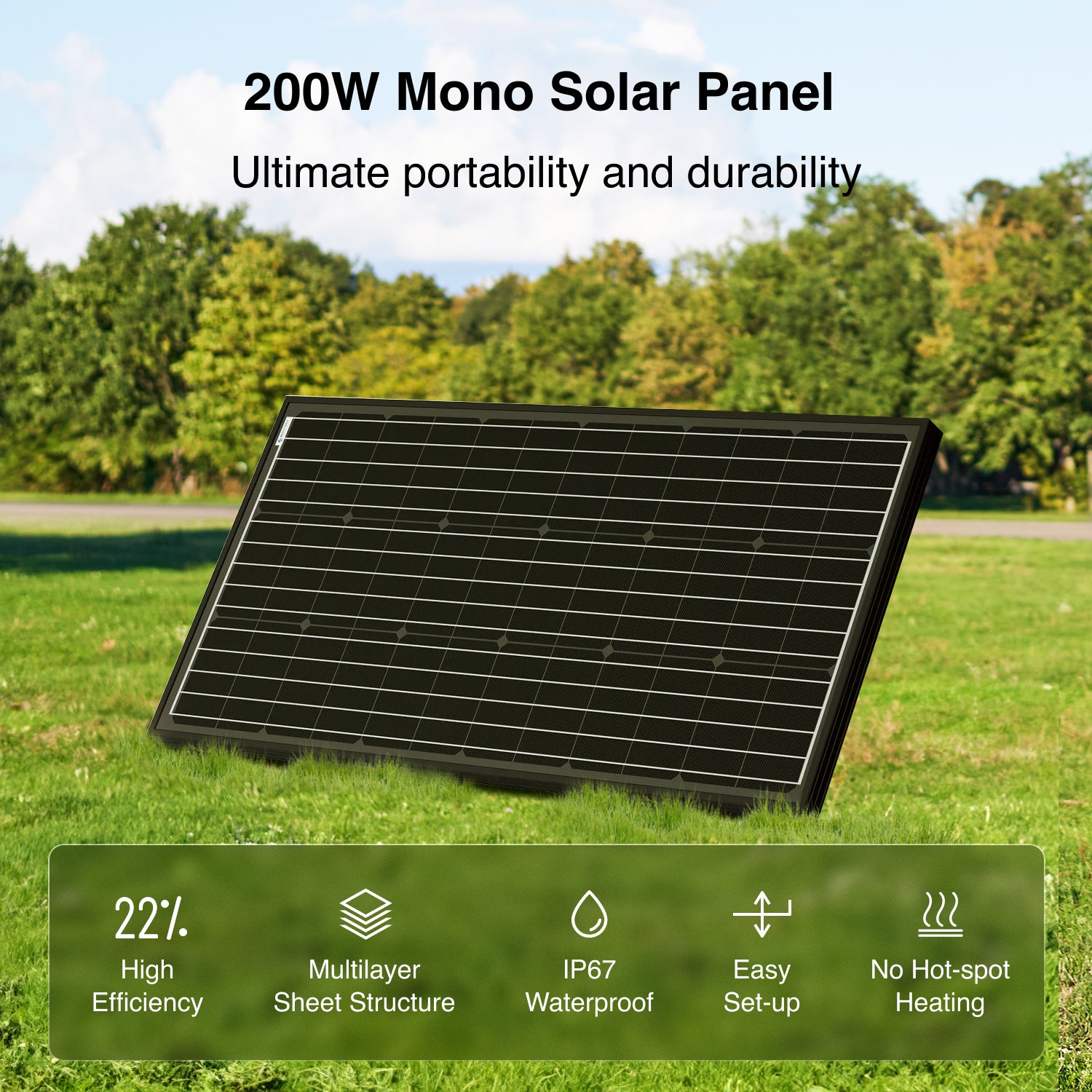

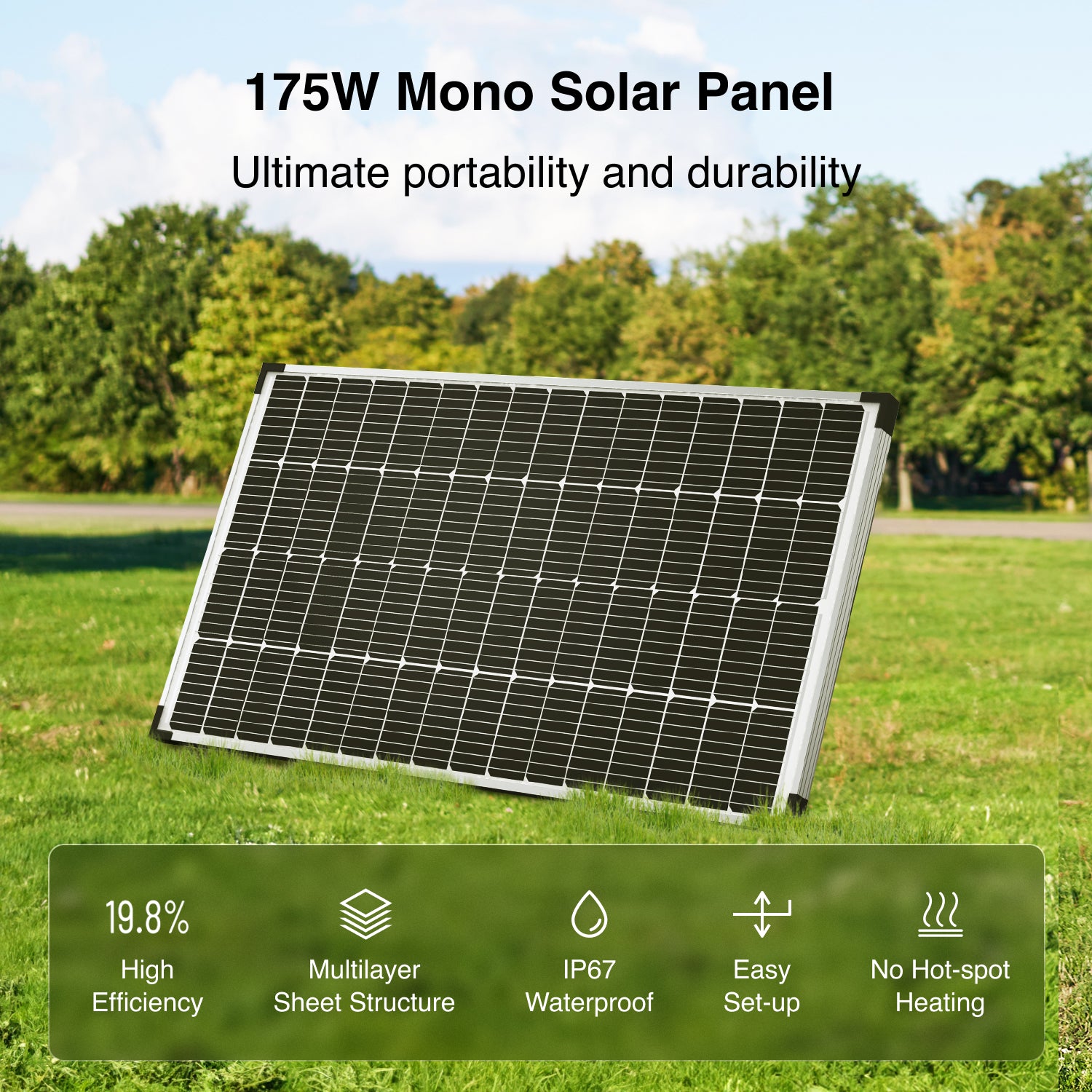

Ultimate Portability and Durability

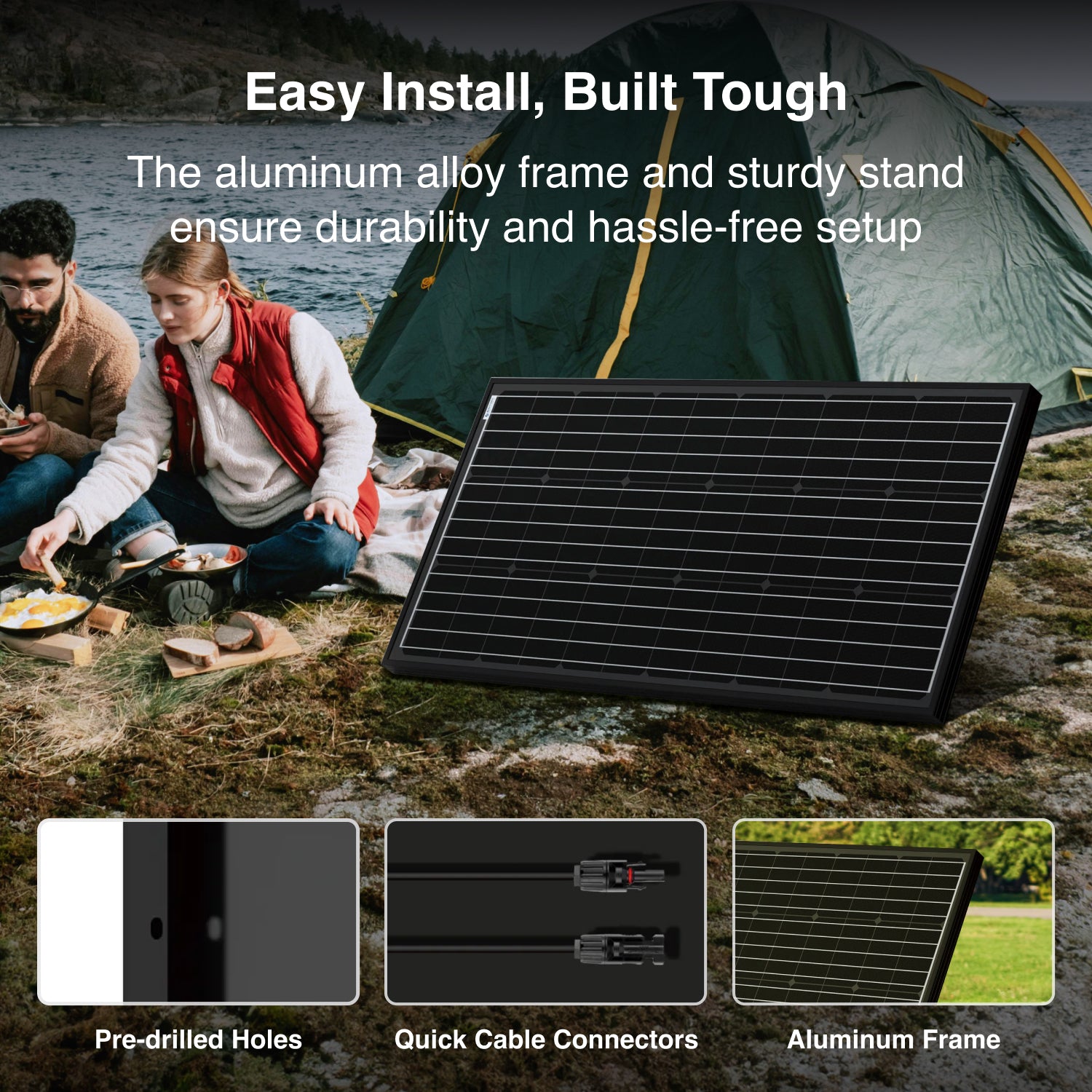

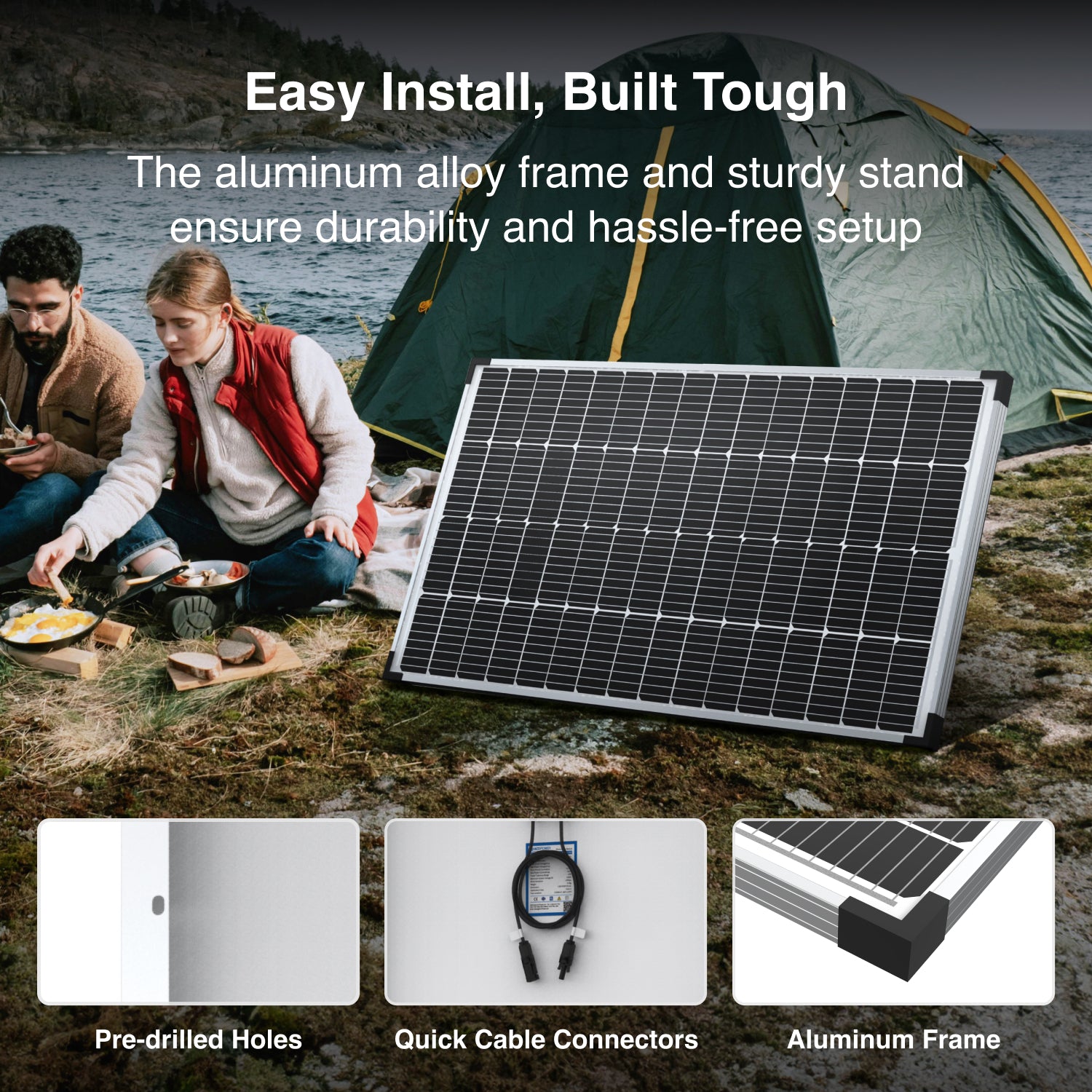

The aluminum alloy frame and sturdy stand ensure durability and hassle-free setup. Perfect for RVs, outdoor camping and road trips. Grab the built-in handle and you're ready to go!

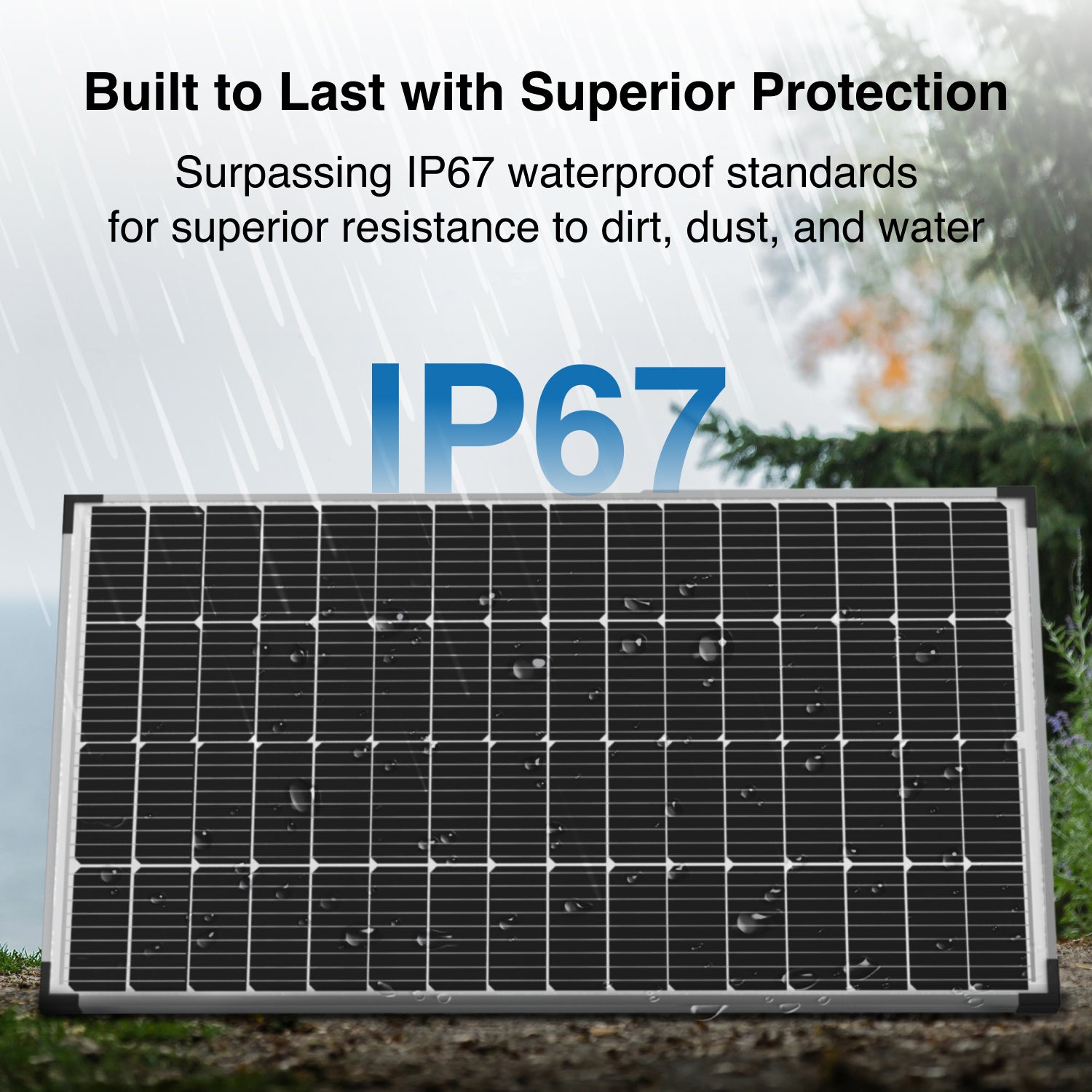

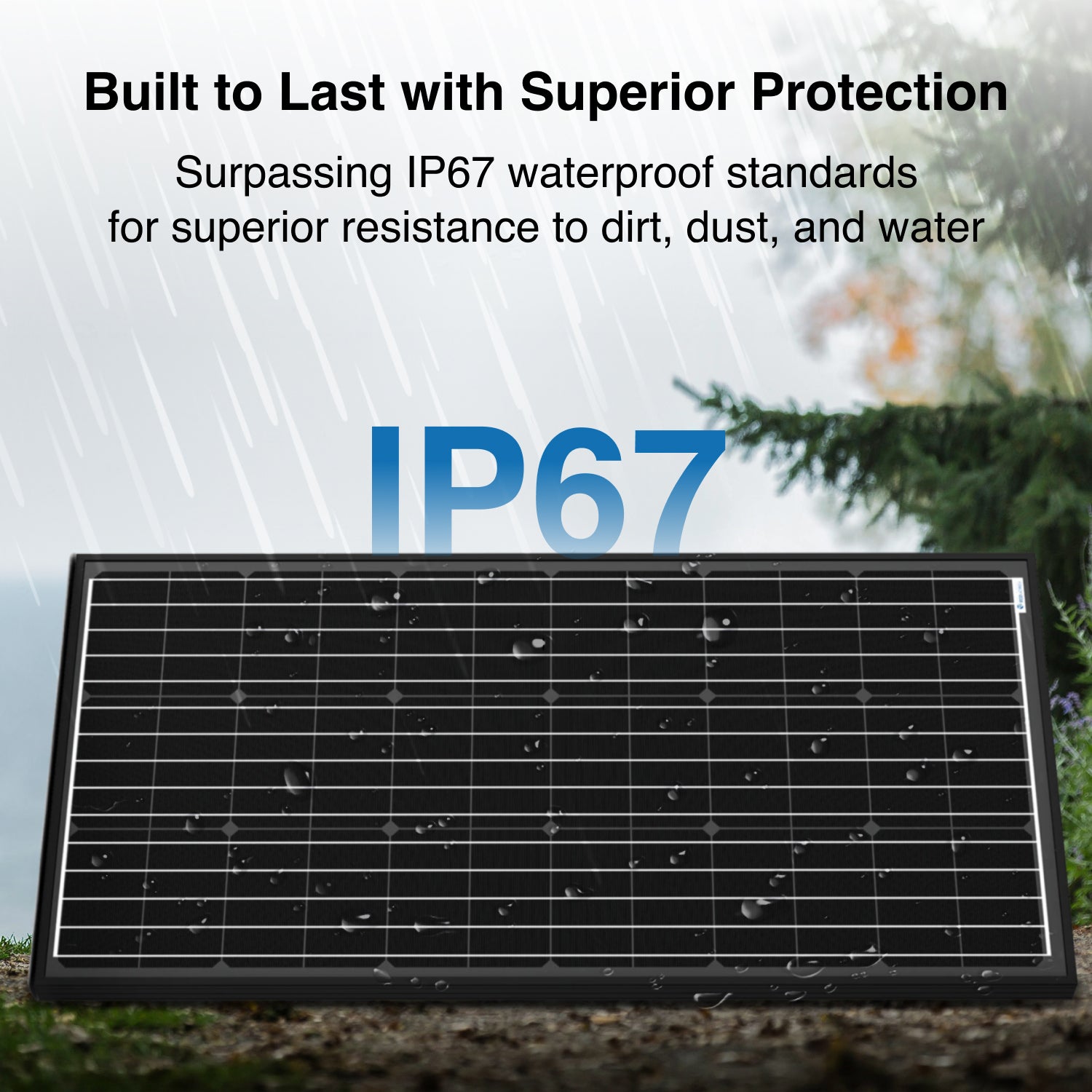

Durable and Reliable in Any Weather

Face any weather with confidence. Our solar panels are engineered to handle the toughest environments, ensuring durable and long-lasting use. With over 30 in-house tests, we guarantee exceptional quality and performance for years to come.

Effortless Installation and Portability

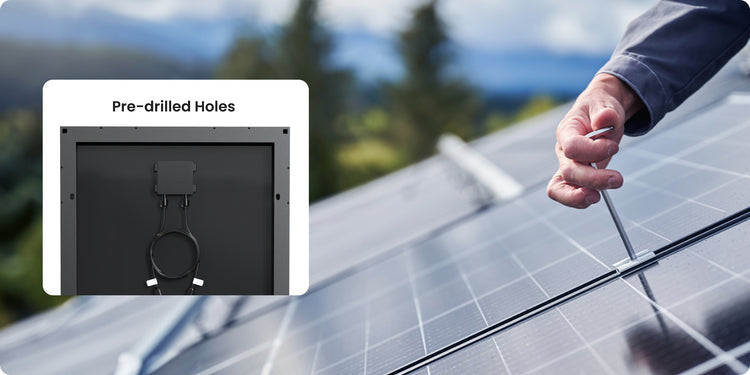

Simplify your solar setup with our easy-to-install and handle panels. Perfect for high-end off-grid and mobile applications, they come with pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts.

Swift 24-Hour Support Response

Our dedicated sales and technical support team is available around the clock to ensure you get a response within 24 hours. We're here to help you with any issues, anytime.

Specification

	200W Mono Solar Panel	175W Mono Solar Panel	100W Mono Solar Panel
Max Power at STC	200W	170W	100W
Short Circuit Current	11.3A	10.31A	5.5A
Optimum Operating Current	10.7A	9.67A	5.2A
Maximum System Voltage	600VDC	600VDC	600VDC
Output Cable	12 AWG 900 mm (35 in)	12 AWG 700 mm (27.6 in)	12AWG 900 mm (35 in)
Weight	11.2 kg (24.7 lb)	9.2 kg (20.2 lb)	6.0 kg (13.2 lb)
Junction Box	IP65	IP65	IP65
Solar Cells Efficiency	Over 23%	Over 23%	Over 23%
Open Circuit Voltage	22.1V	21.6V	22.9V
Optimum Operating Voltage	18.7V	18.1V	19.4V
Operating Temperature	-40°C ~ +85°C (-40°F to +185°F)	-40°C ~ +85°C (-40°F to +185°F)	-40°C ~ +85°C (-40°F to +185°F)
Maximum Series Fuse Rating	15A	20A	10A

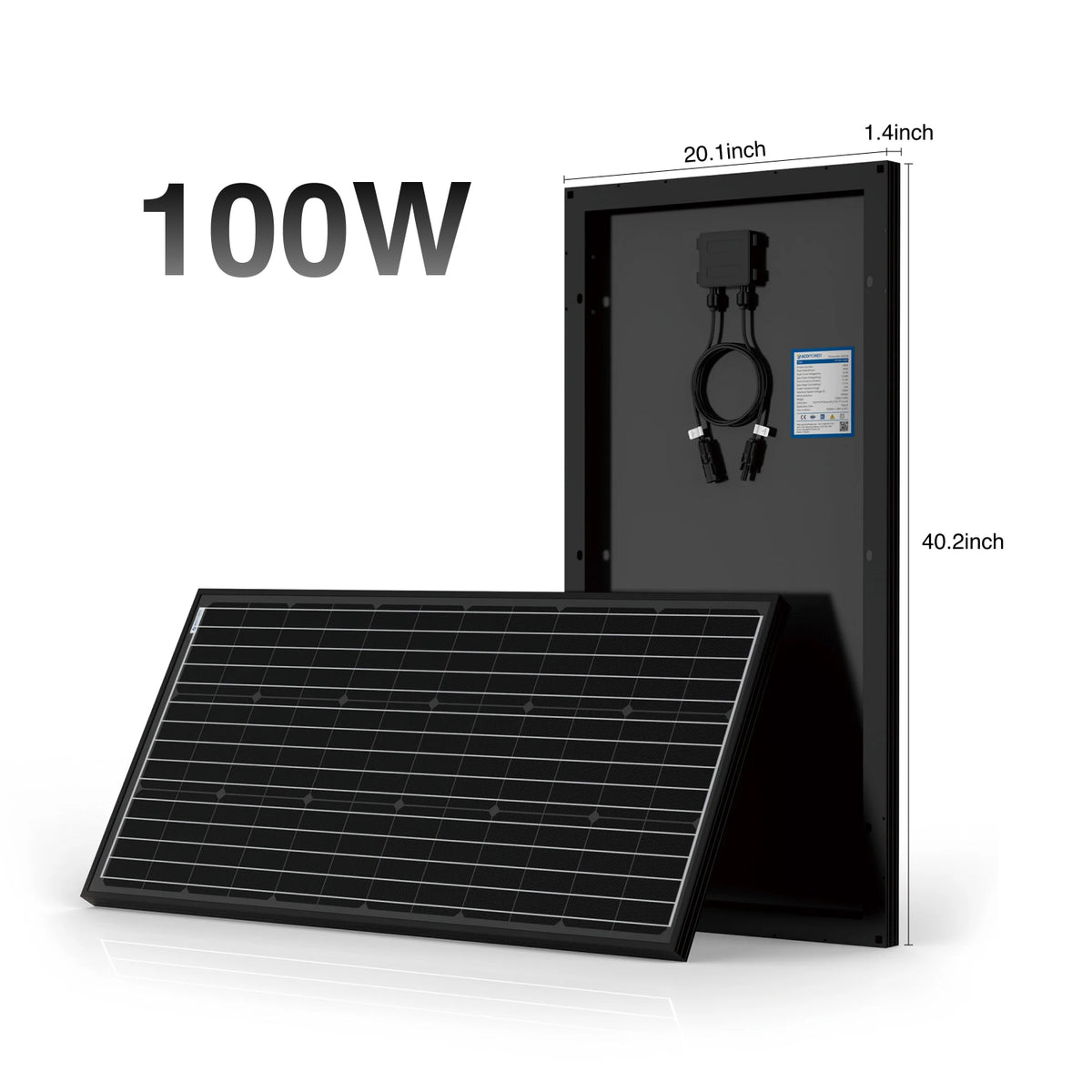

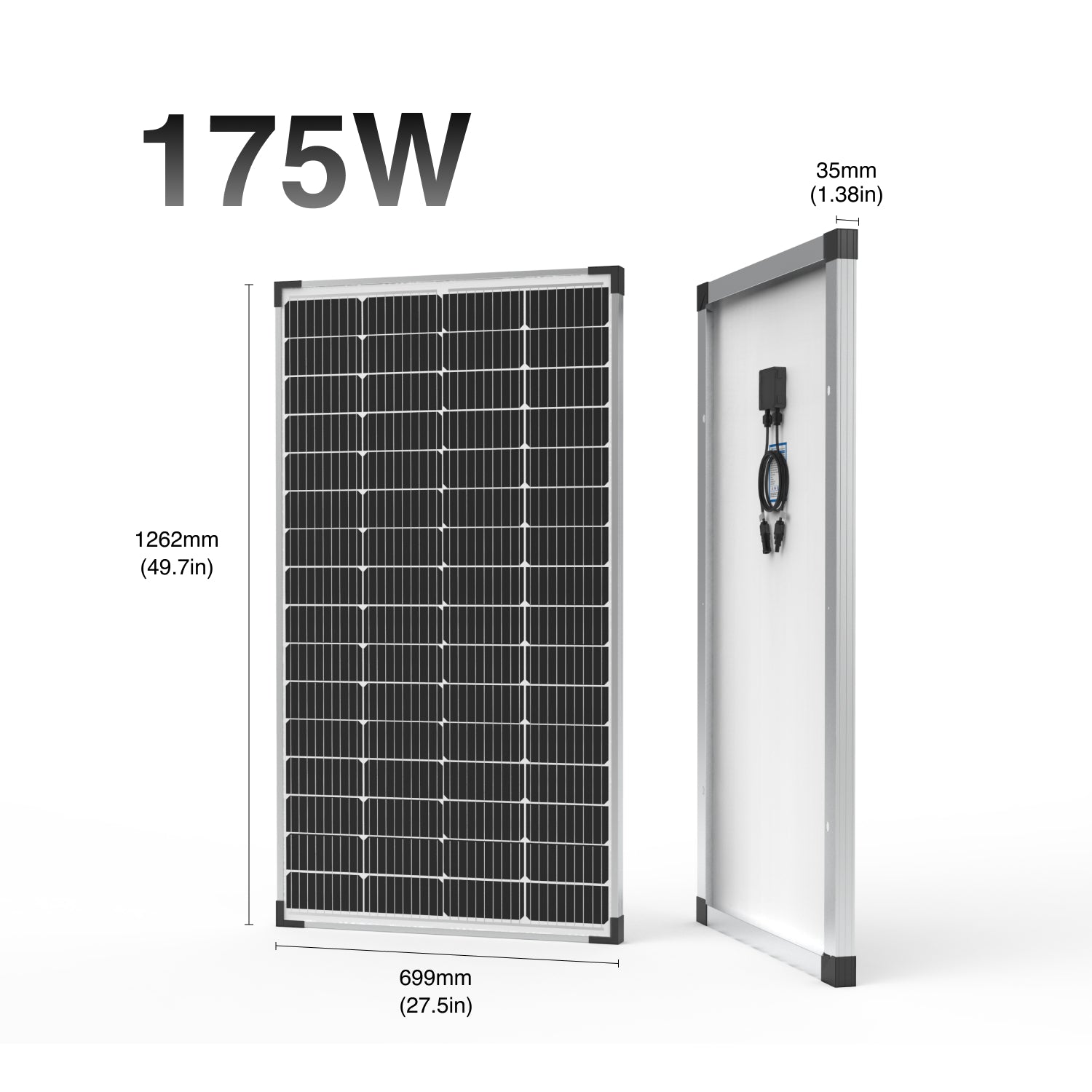

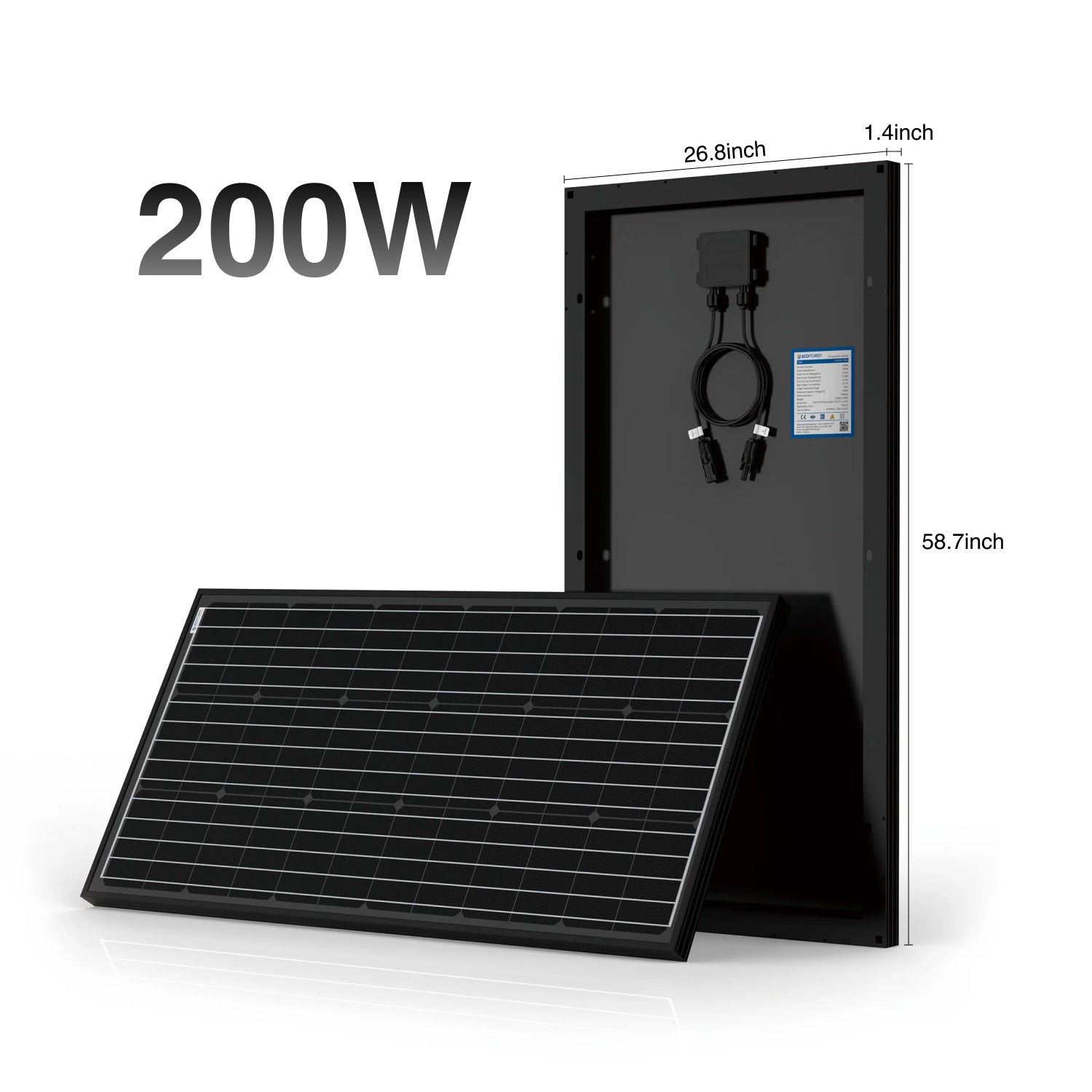

Dimensions	1496 × 705 × 35 mm  (58.9 × 27.8 × 1.4 in)	1262 × 699 × 35 mm  (49.7 × 27.5 × 1.4 in)	1070 × 535 × 35 mm  (42.1 × 21.1 × 1.4 in)
Solar Cells	68 cells (4×17)	64 cells (4×16)	36 cells (3×12)
Connectors	Solar Connectors	Solar Connectors	Solar Connectors
Workmanship Warranty	10-Year	10-Year	10-Year
Performance Warranty	25-Year Power Output Warranty	25-Year Power Output Warranty	25-Year Power Output Warranty

Swipe left

FAQs

User Manual

⏬100W User Manual

⏬175W User Manual

⏬200W User Manual

What do l need to complete my off-grid solar power system?

A solar panel has to be connected a charge controller to requlate current, and a battery to store the electricalpower. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cablesconnecting the charge controller to a deep-cycle battery.

What does off-grid and on-grid mean?

On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off.grid refers to systems that are not connected to the grid and therefore store the generated power for later useOff-grid systems are not affected by grid blackouts.

How should l connect solar panels in my electrical circuit (series vs parallel) ?

Solar panels can be connected in series or in parael to meet your electrical circuit size and power demand. Connecting solar panels inseries willhave the effect of adding up their operating voltage output, while system current output will be the same as that for one panel.While, connecting solar panels in parallel willhave a diferent effect;individual panels operating curent output will add up to be the systemoutput current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power outputand system rating for your power system, you can use both parallel and series connections.

What does the 12V/24V in the product title of the solar panel mean? Why is it different from the value on the label/specifcationsheet of the solar panel?

The 12V/24v in product titles (ex. 150w 12v clGs Solar panel) does not refer to the actual voltage (Voc or vmp) ofthe solar panels, but ratherto the voltage ofthe solar system or energy storage system to which the panel is best suited. The voltage ofthe solar panel must be highei
than the solar system voltage.

Good

These work amazing to download power from the sun would recommend you put two on your car get about 130w per panel

Working so far after many hard rains

Bought this for an electronic gate arm and was much cheaper than the brand name one from the gate manufacturer. So far it is still working after being installed outside for nearly two months of many hard rains and winds. I preemptively siliconed all around the face of the panel to help make it more water resistant. If it lasts even a year it will be worth the money spent on it.

Short summery: It works well; would buy again.

Longer version: First; the diode all the other reviewers are debating. No it doesn't have one and that's a good thing. While you certainly can, you really shouldn't be just connecting this to a battery. You should be using a purpose-selected charge controller of a minimal quality that it will almost certainly have it's own. If you're wondering, why not have both; The reason is that each diode drops your voltage by .6 volts. It doesn't sound like a lot but if you're using this in an area that doesn't get a lot of sun, it can make a difference.In my use, I had a seldom used car whose battery died a lot. I combined this with a DIY MPPT controller, purchased here on Amazon for about $13. Also, since the cigarette lighter port on my car only connected when the car was on, I connected to the battery via an “Add a circuit” fuse tap, also purchased here on Amazon for about $7. At first, it didn't work because I had placed it on my dashboard in a way that slanted slightly away from the sun. Once I tiled it as directly at the sun as I could, it worked perfectly.
